Host a static web application on AWS using S3. This guide covers best practices, security configurations, and performance optimization for hosting websites.

Overview:

–

1. AWS Route53: Buy/setup a domain name.
2. AWS Certificate Manager: Assign SSL Certificate for the domain.
3. AWS S3 Bucket: Create S3 bucket with static website.
4. AWS CloudFront: Map CloudFront endpoint (S3-CF-Route53).
5. AWS WAF: Web Application Firewall

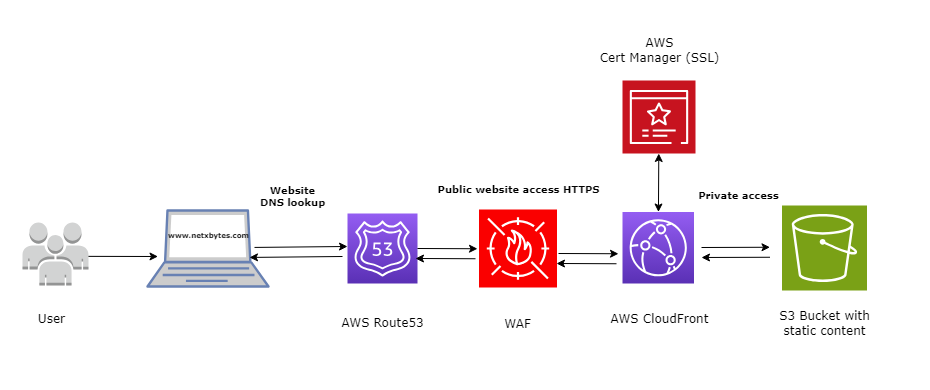

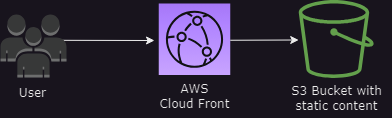

Architecture Diagram

Step 1: Route 53

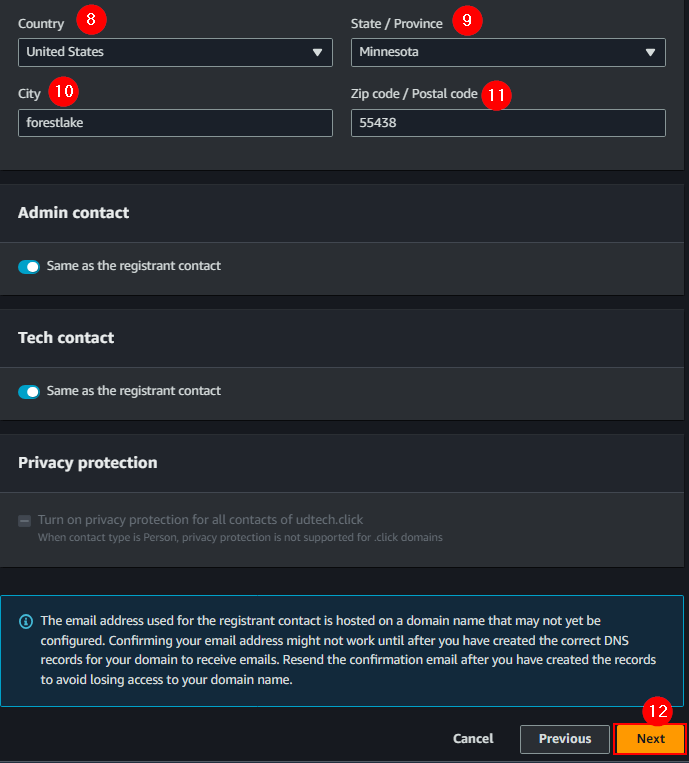

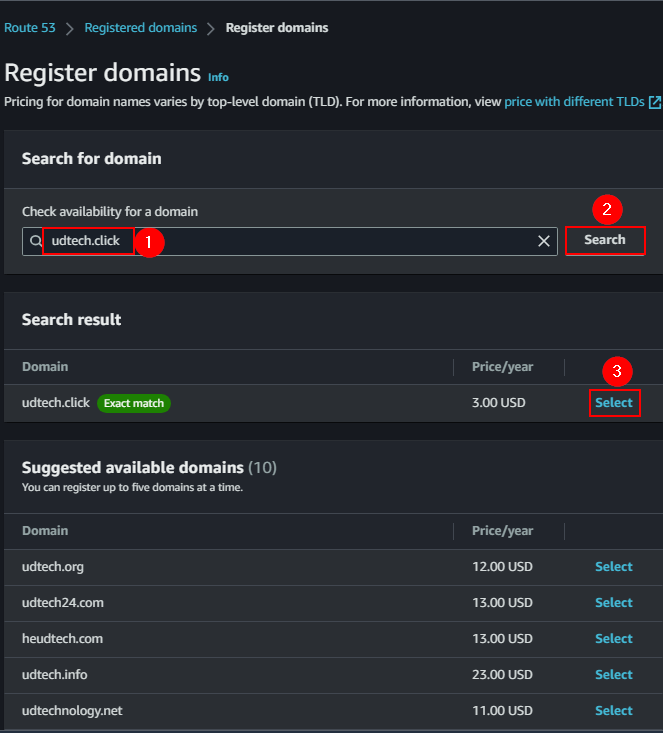

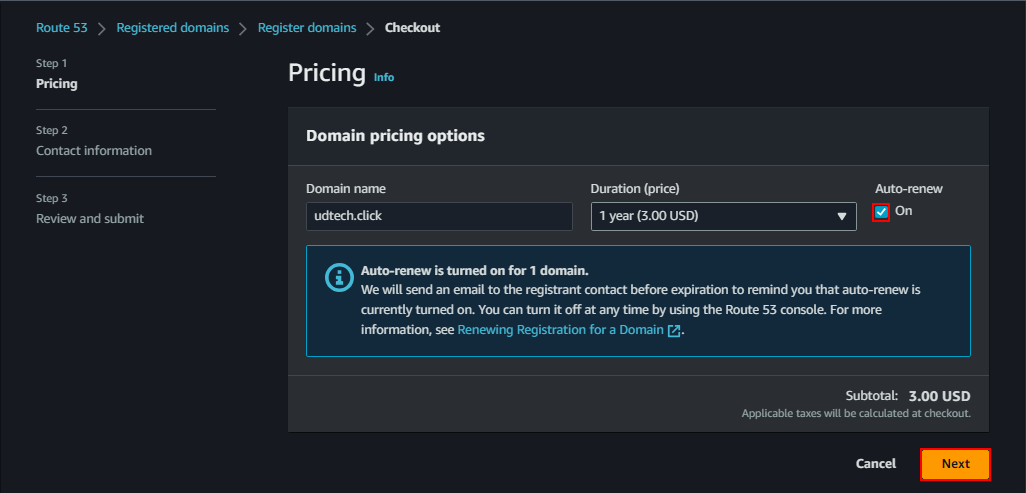

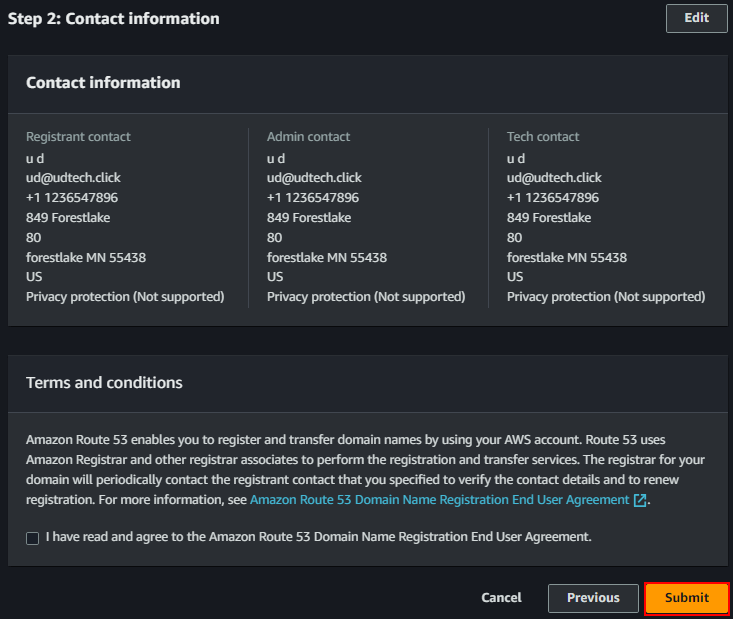

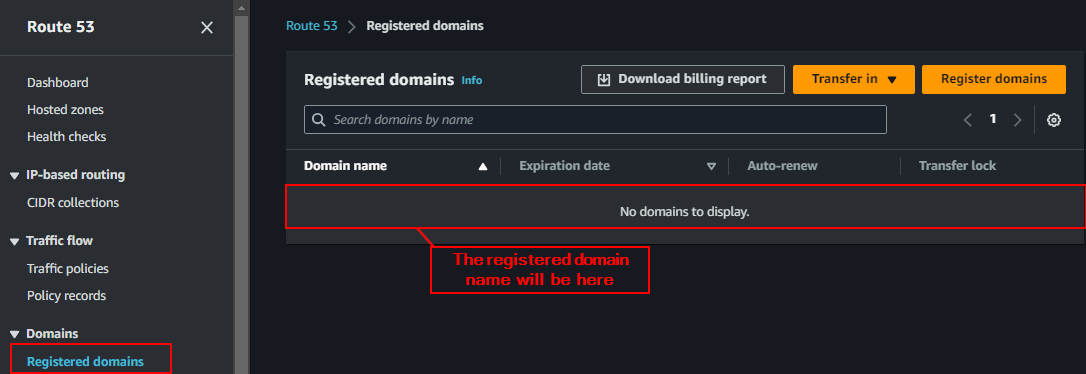

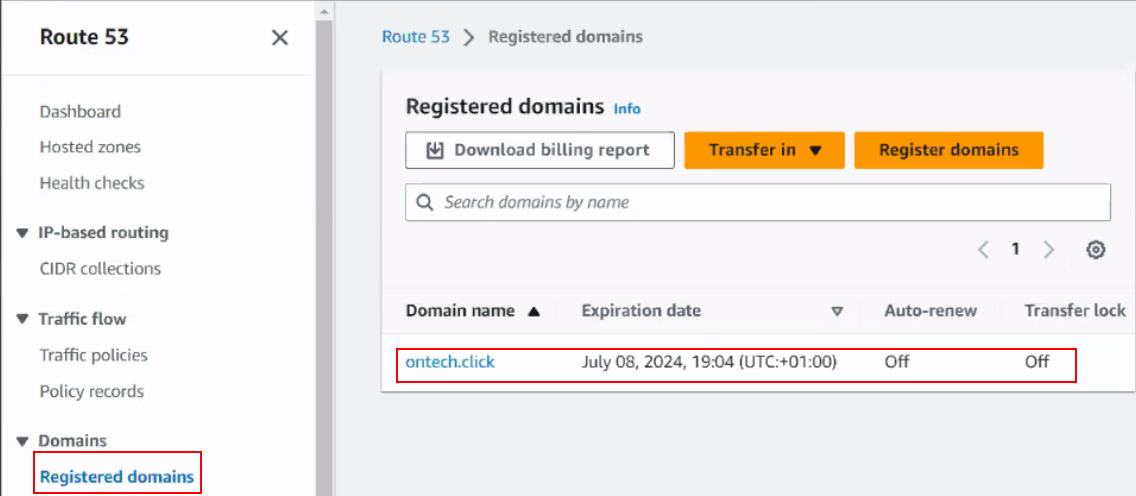

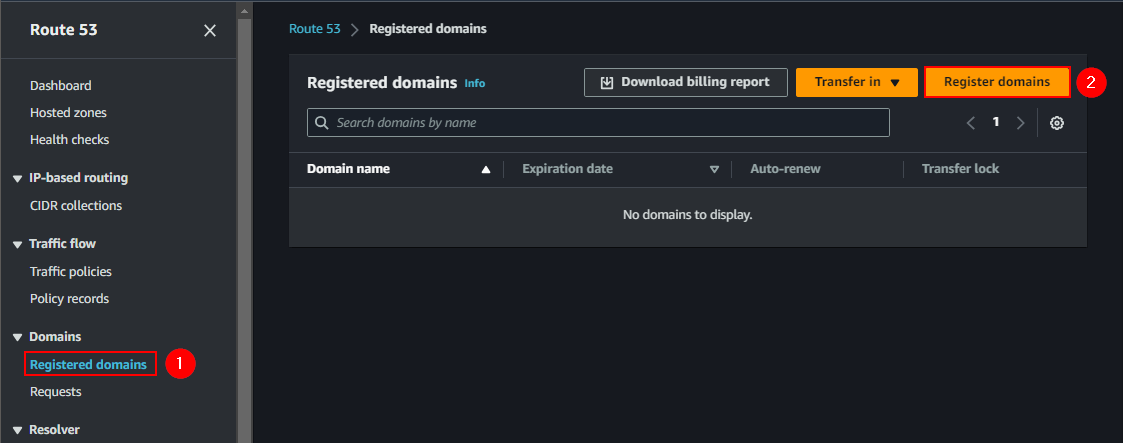

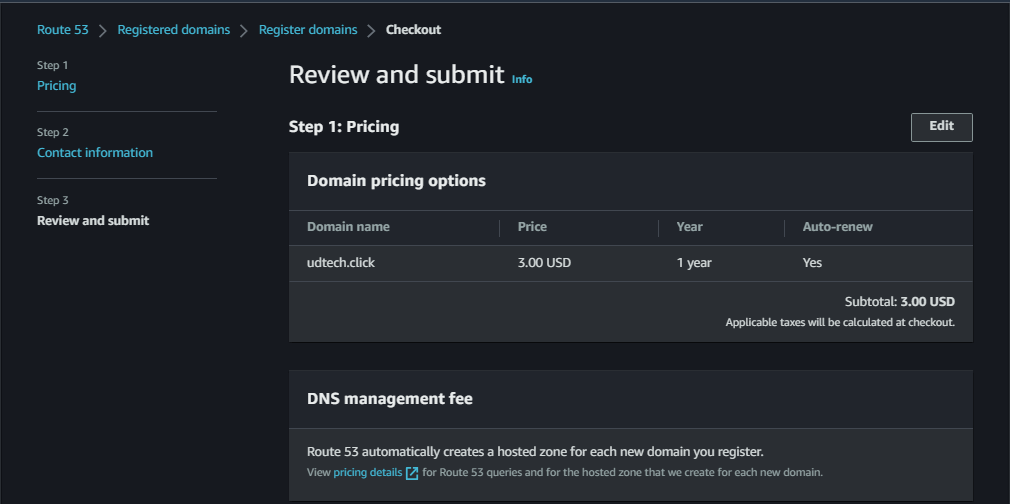

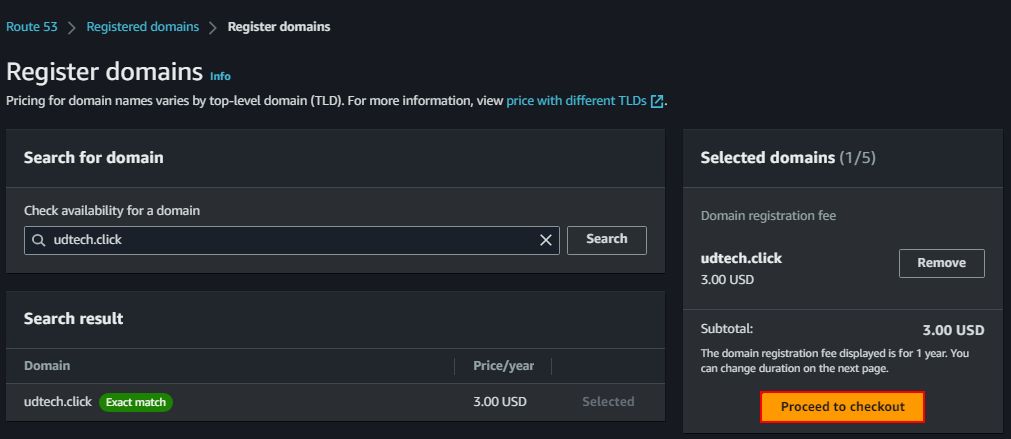

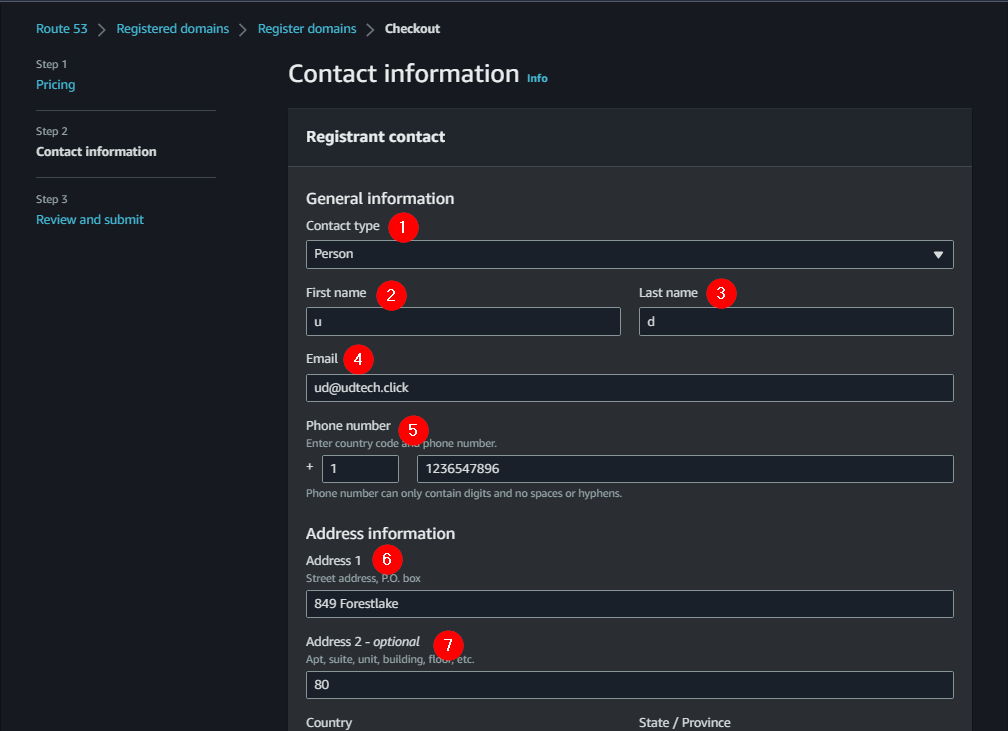

-Get a domain Name -Search for route 53 -under domain > register domain

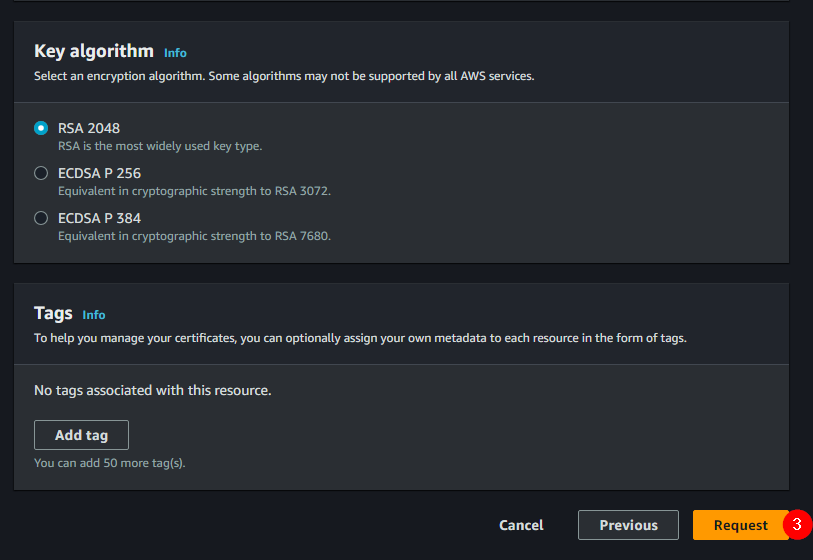

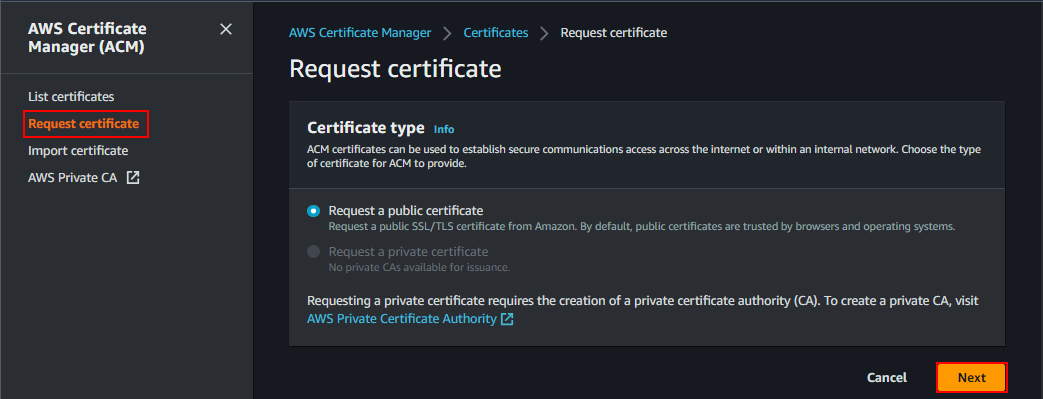

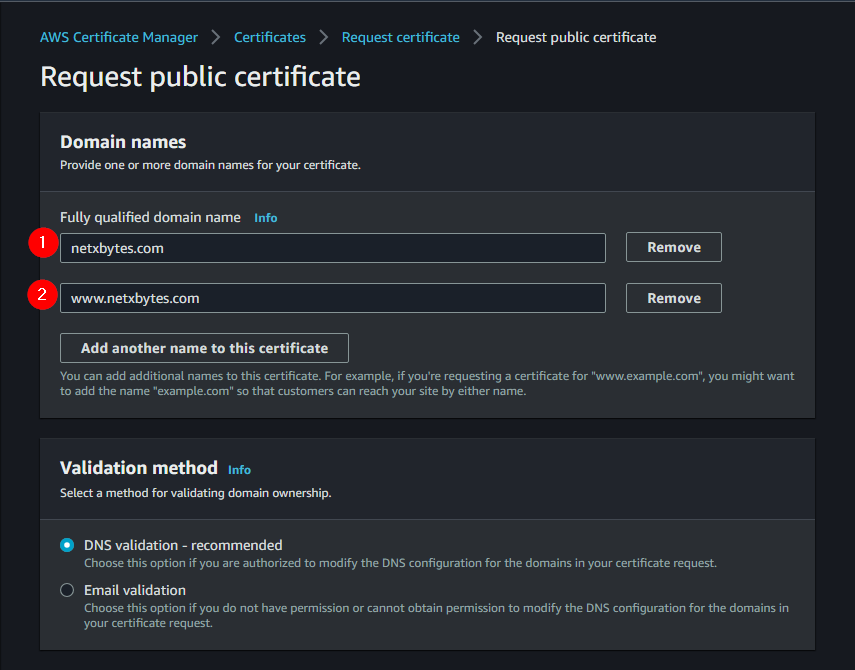

Step 2: Request a Certificate

Adding SSL Certificate for Secure HTTP (HTTPS)

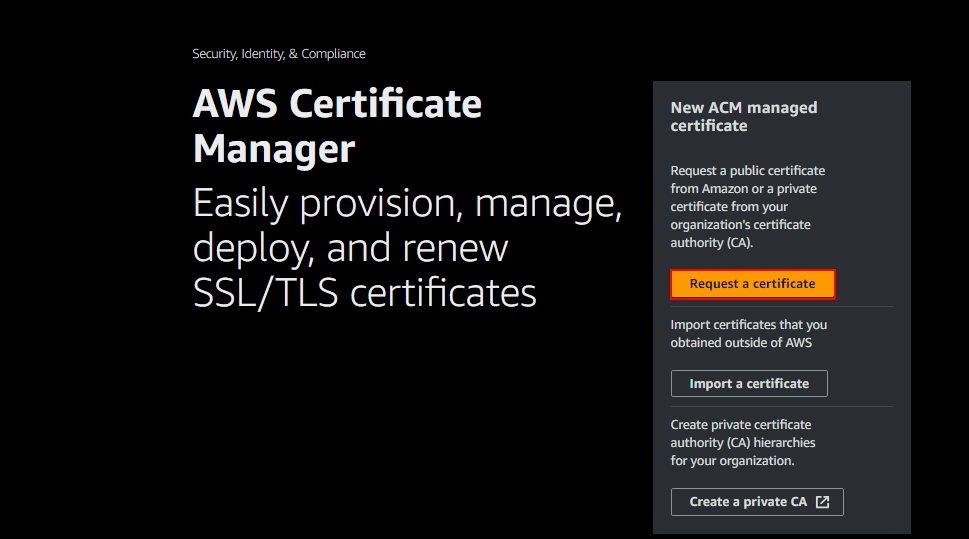

-Search for certificate manager

Create a CNAME record in Route 53

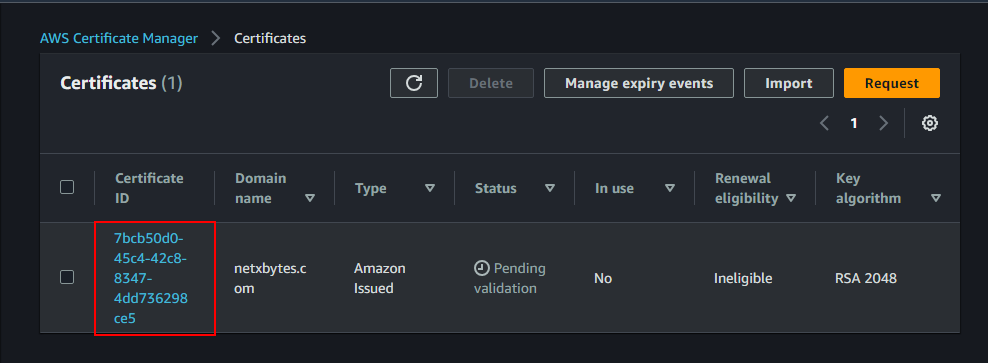

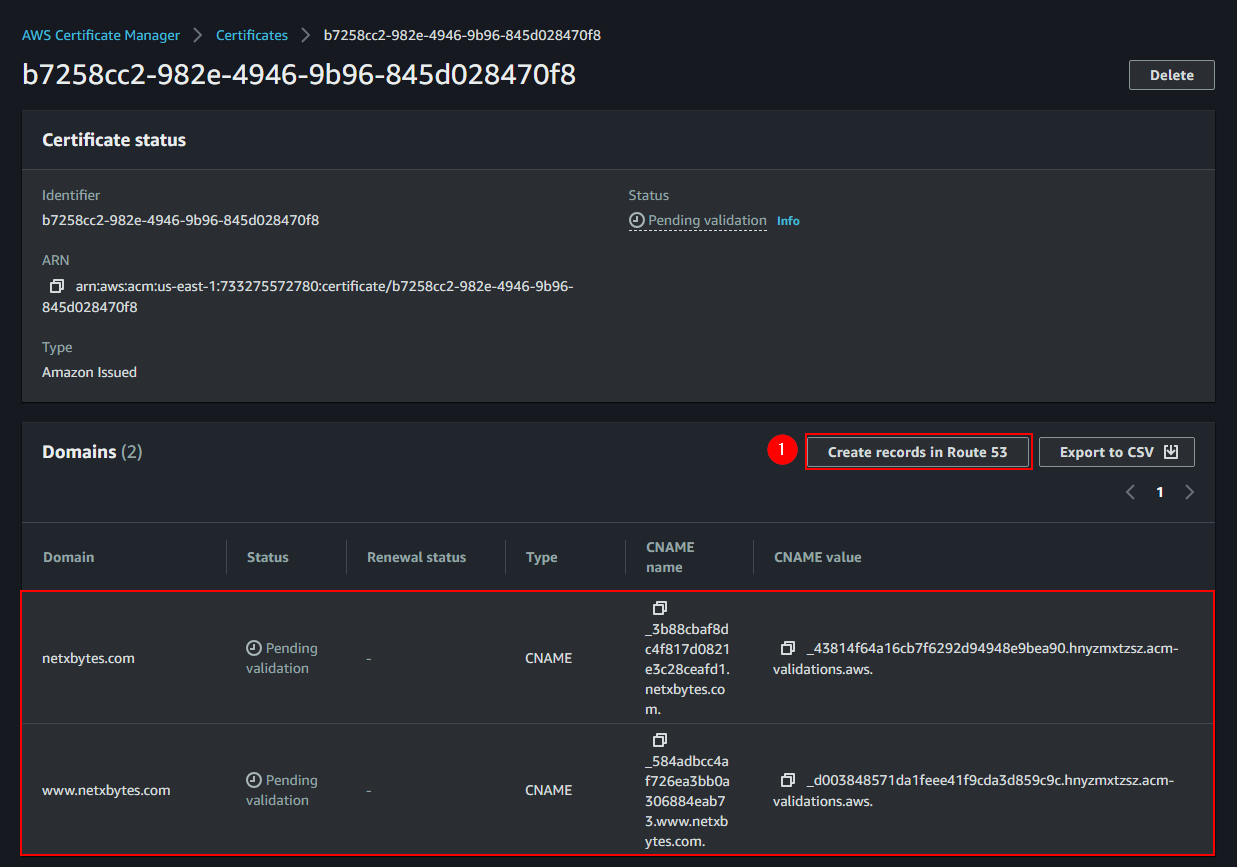

-there are two ways of doing this -Open the newly created certificate -create records in route 53 -that will create a CNAME in route 53 for both the domain and the subdomain

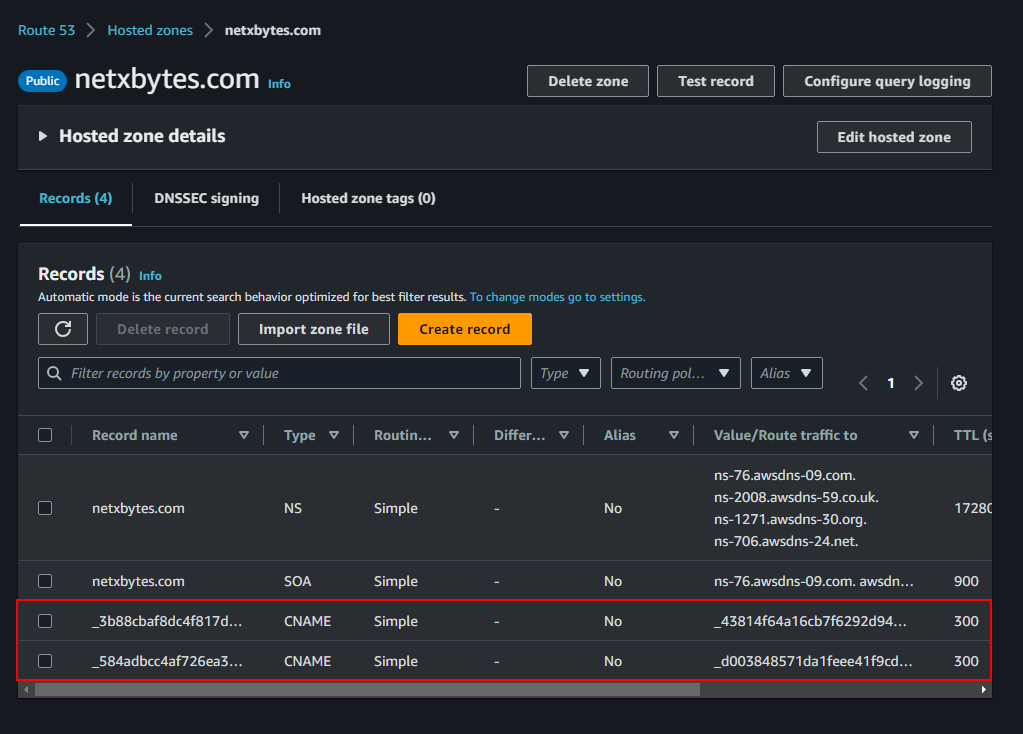

Verify that the CNAME was ADDED

Note: we will come back to add A record after S3 has been created

Step 3: Create S3 Bucket

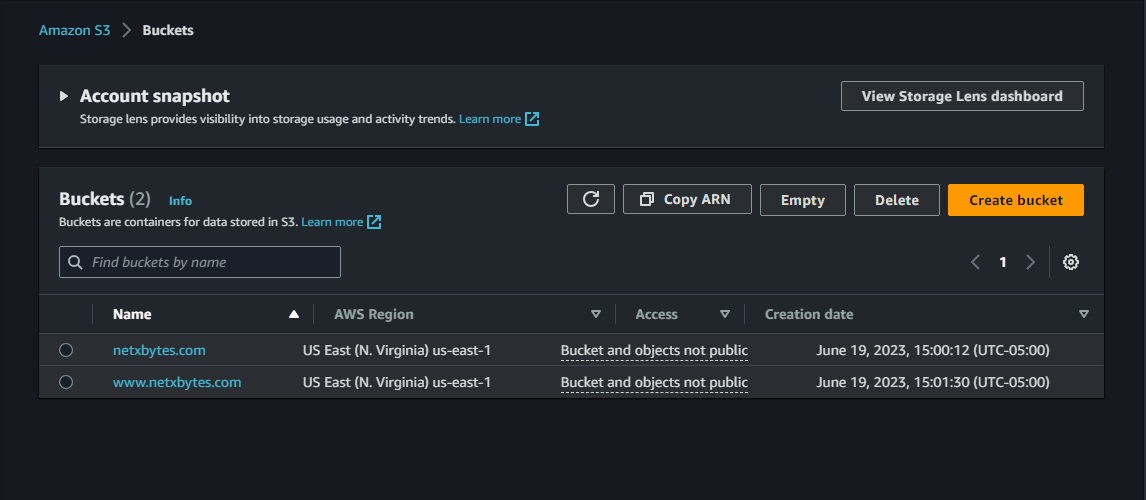

Create two S3 buckets with Default settings

- netxbytes.com
- www.netxbytes.com

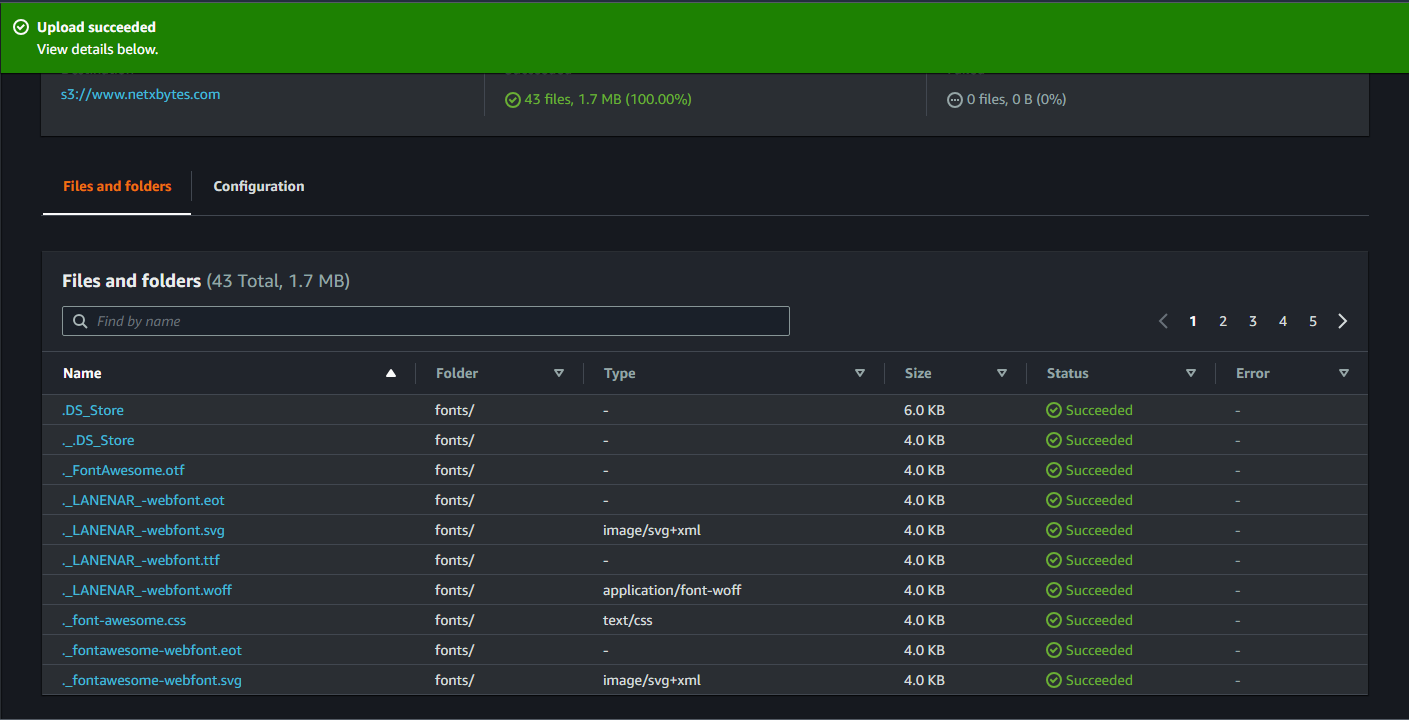

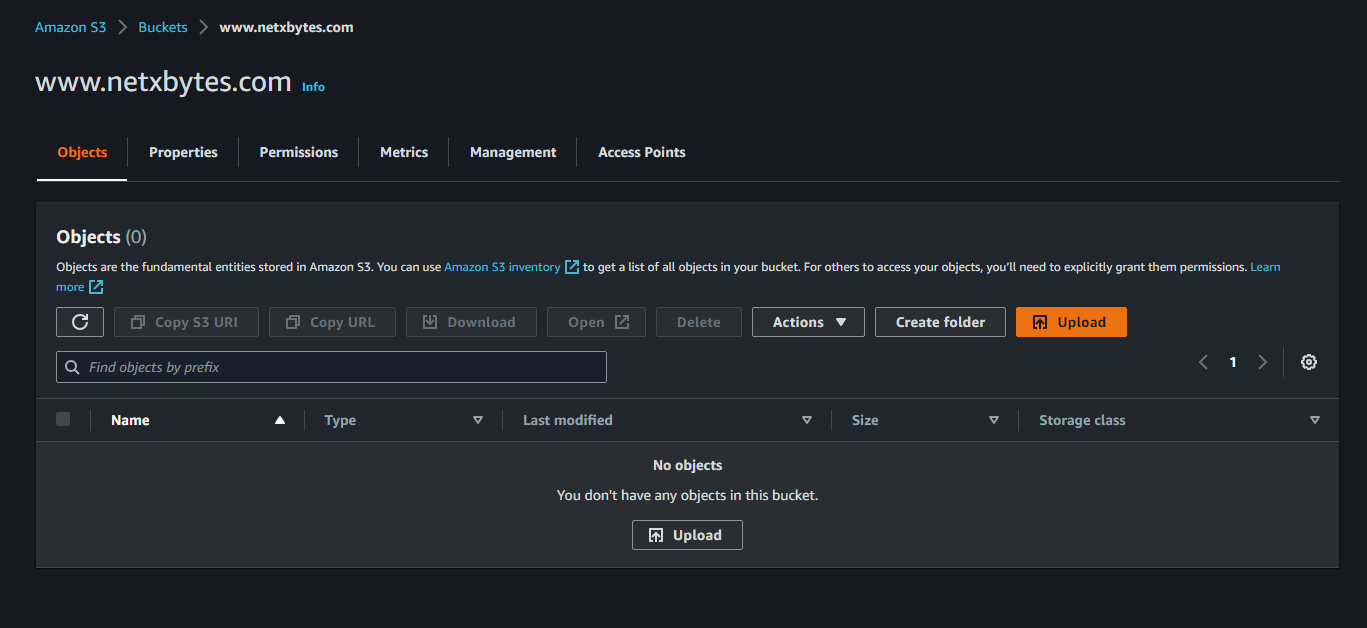

• upload the website details to the www.netxbytes.com

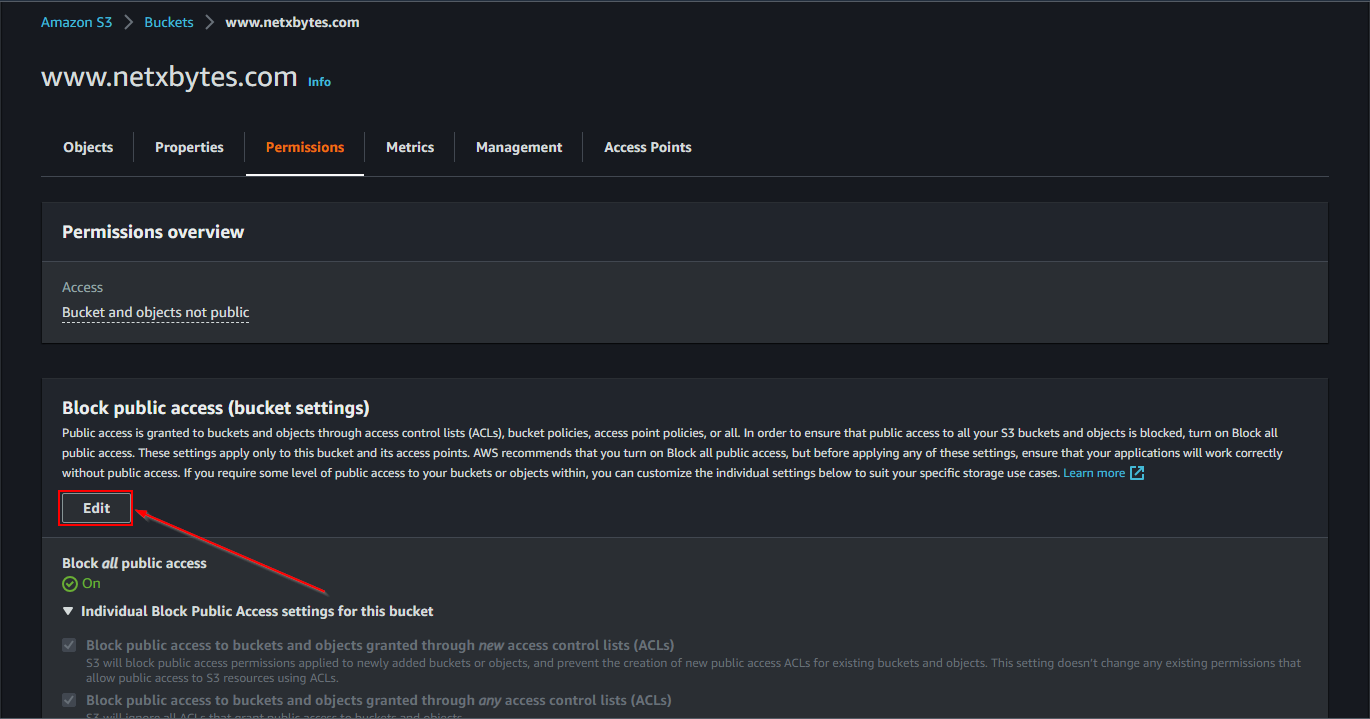

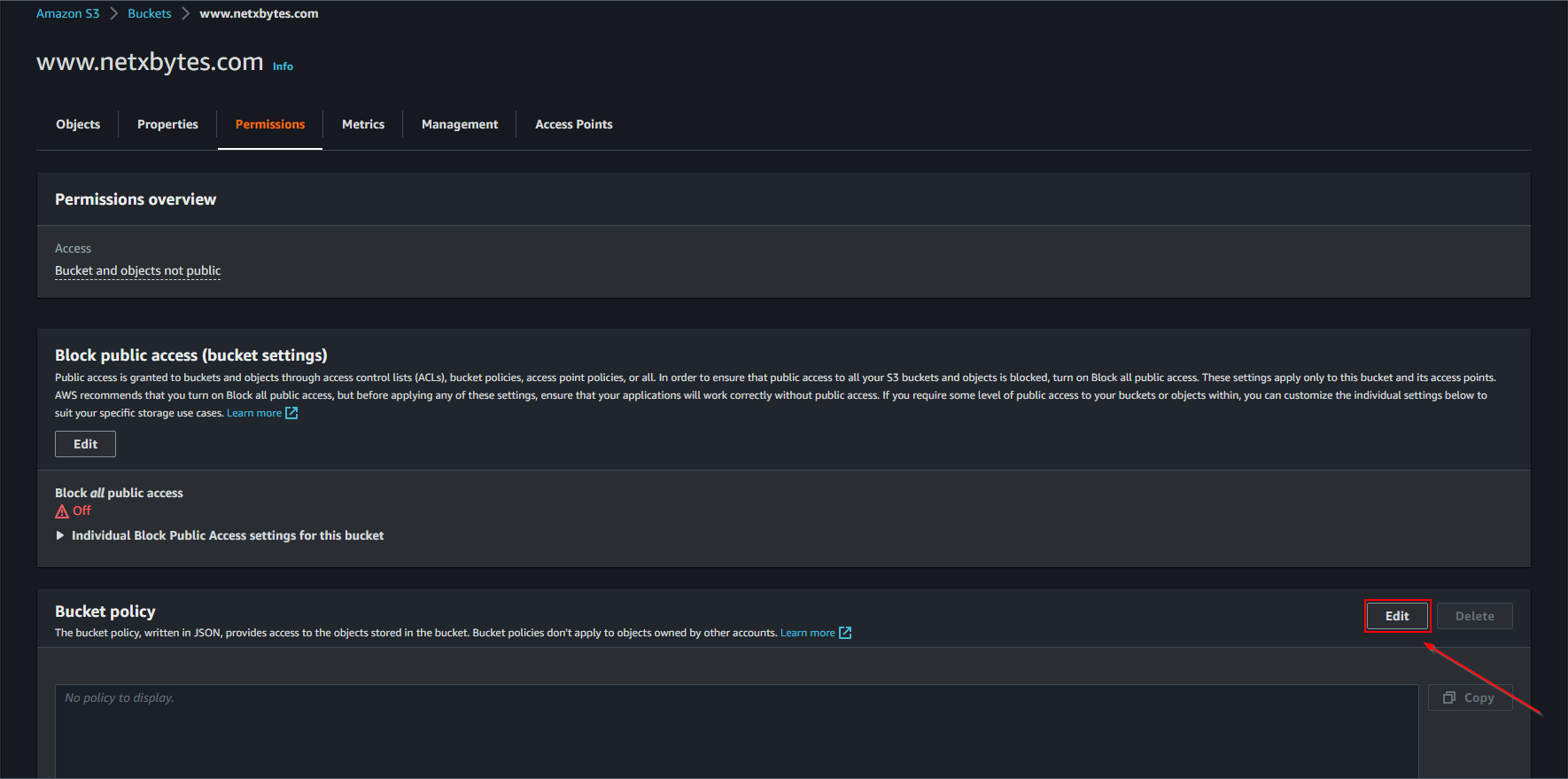

Enable Public Settings for www.netxbytes.com bucket

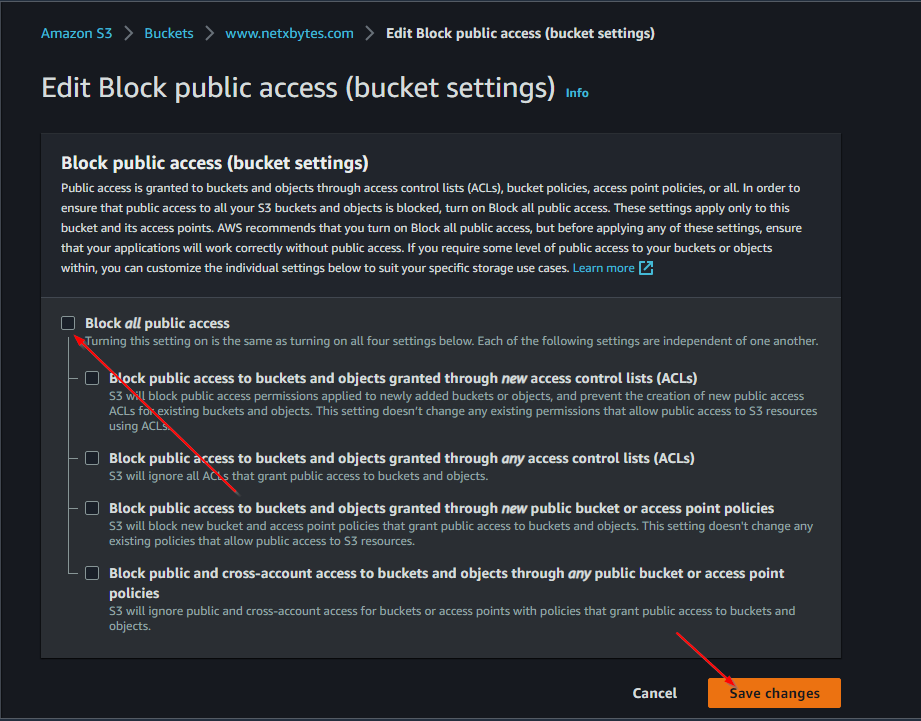

• Disable block public access

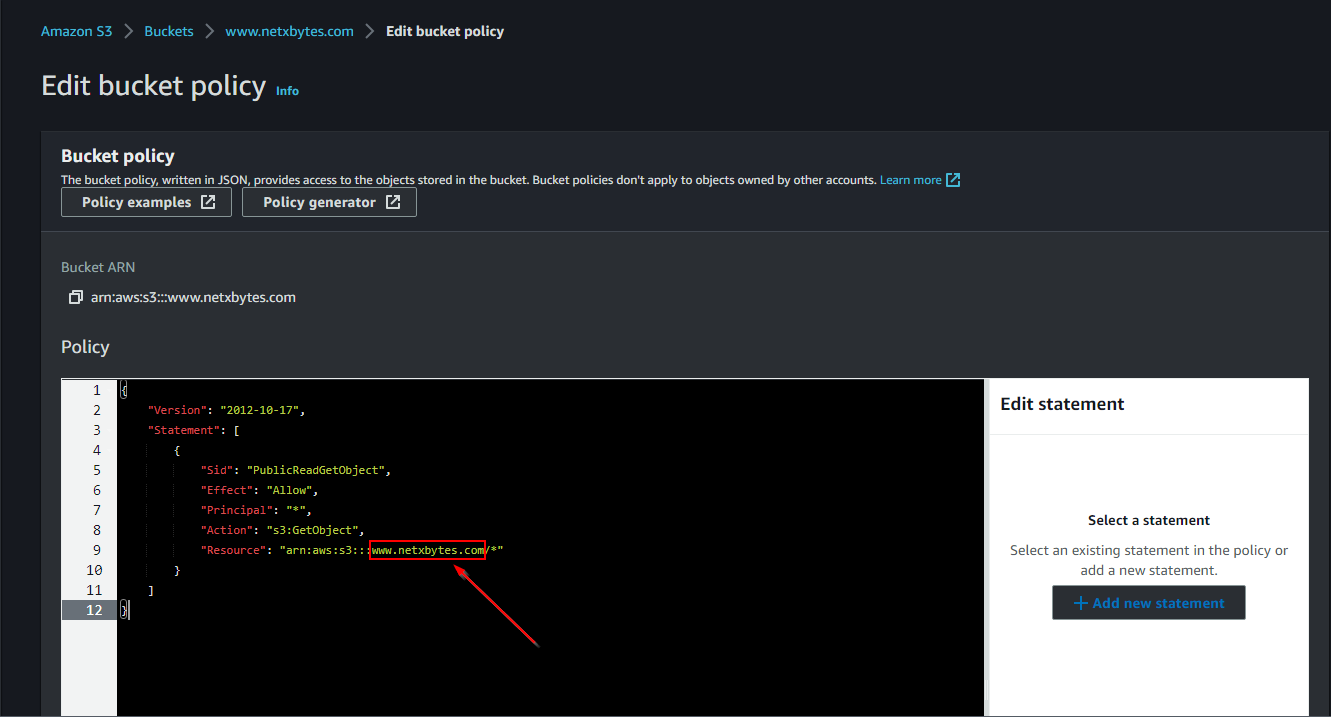

• Edit Bucket Policy

• Add the script and make sure to add the bucket name

{
  "Version":"2012-10-17",
  "Statement":[{
     "Sid":"PublicReadGetObject",
     "Effect":"Allow",
     "Principal": "*",
     "Action":["s3:GetObject"],
     "Resource":["arn:aws:s3:::example-bucket/*"]
  }]
}

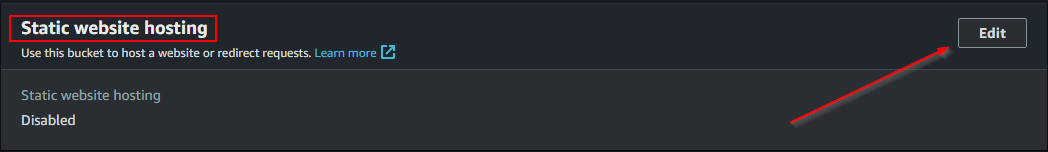

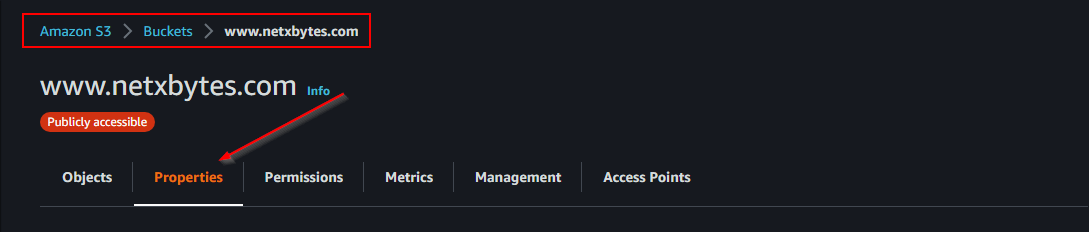

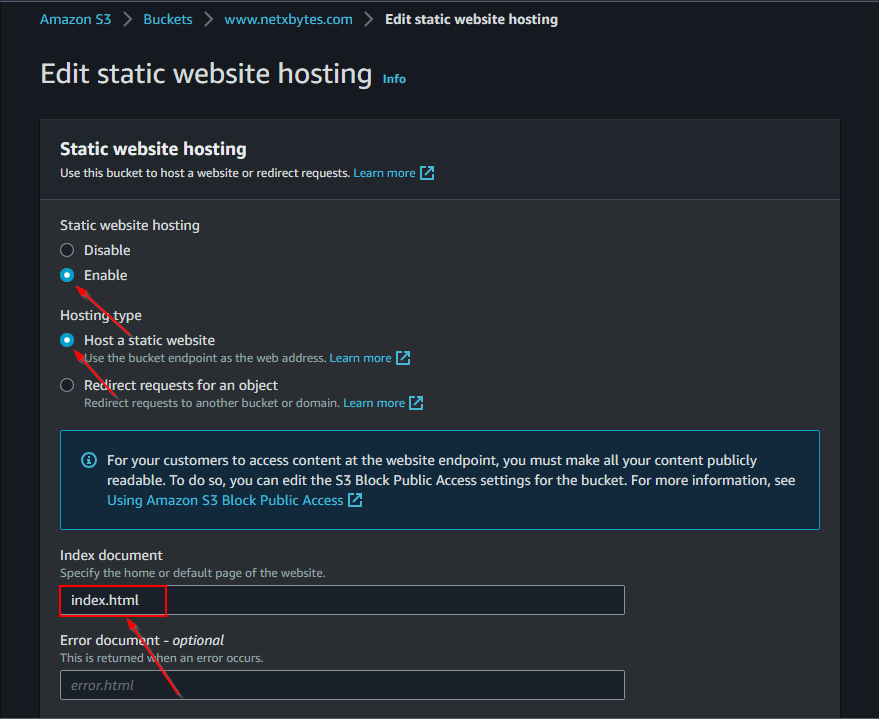

Enable static website hosting -Properties > Static Website hosting -Check Enable -Check Static website hosting

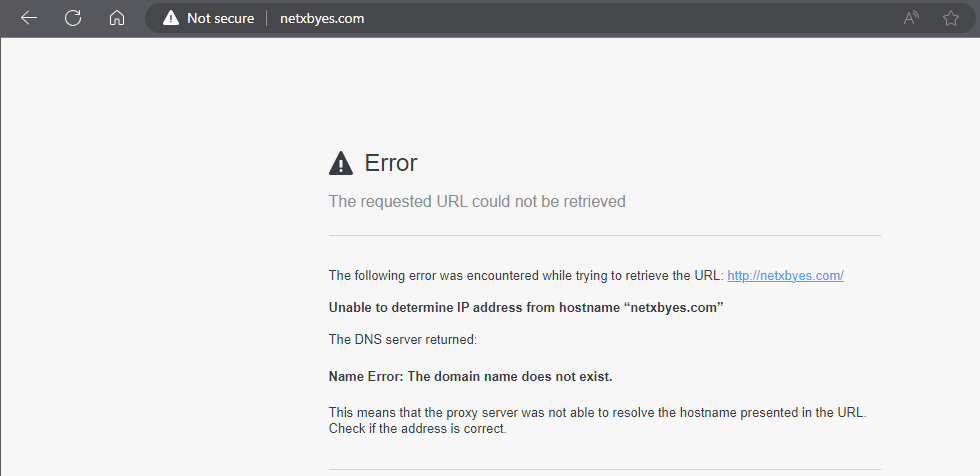

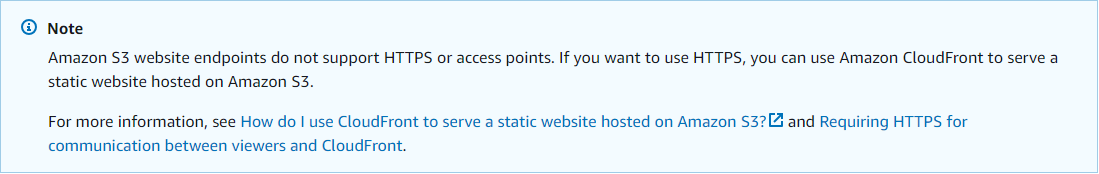

Note: if you got to the netxbytes.com it still will not work, -You need to add a redirect for it to work

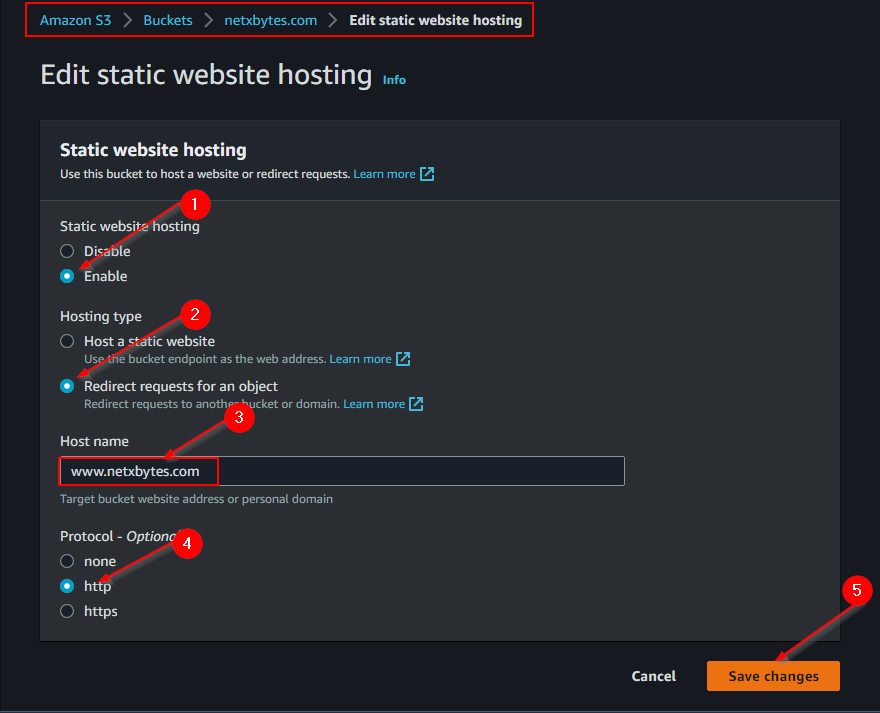

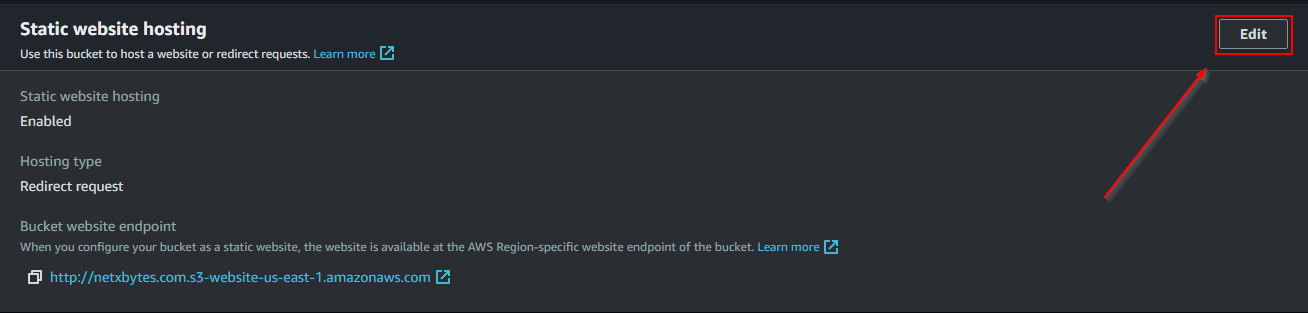

Add a redirect from the netxbytes.com to the www.netxbytes.com -Go to the netxbytes bucket -properties > static hosting

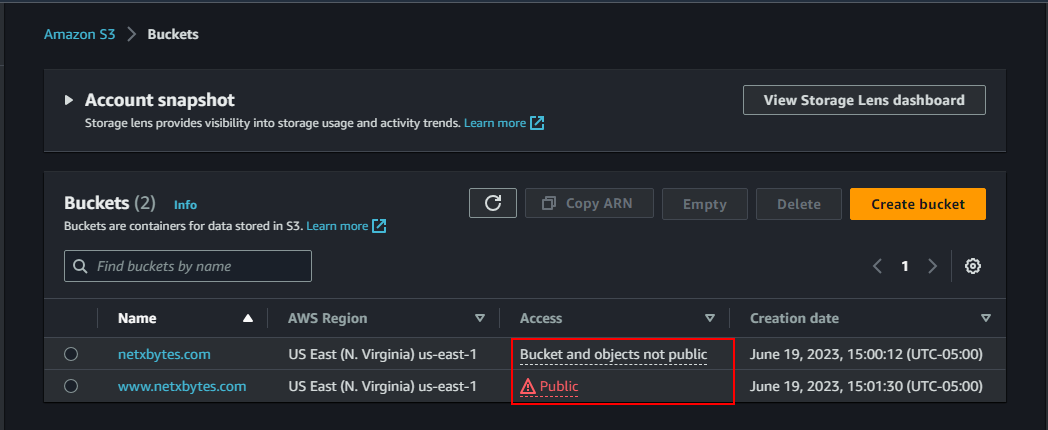

Final Product should be like this -Note: Your browser ma cache the url you you may a have to clear cache or user incognito or a different browser -Also i noticed the netxbytes bucket does not have to me made public for the redirect to work

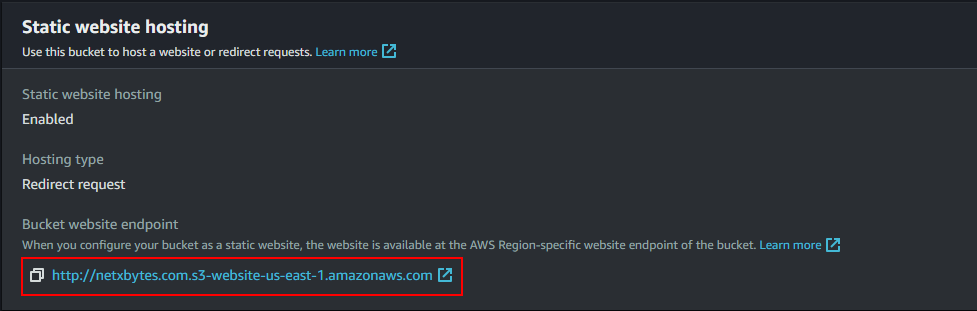

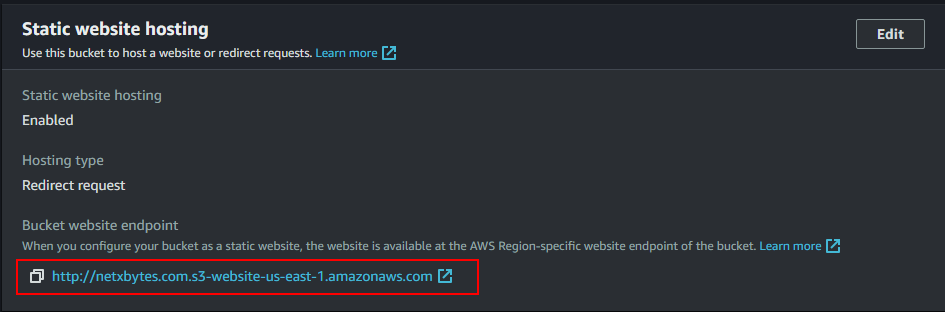

Get the Url for netxbytes.com -It should redirect you to the www.netxbytes.com url

Step 4: Create CloudFront Distribution

AWS CloudFront is a content delivery network (CDN) It helps deliver content, such as web pages, images, videos, and APIs, to end users with low latency and high transfer speeds.

-Create distribution for the domain and the subdomain www.netxbytes.com and netxbytes.com

Note:

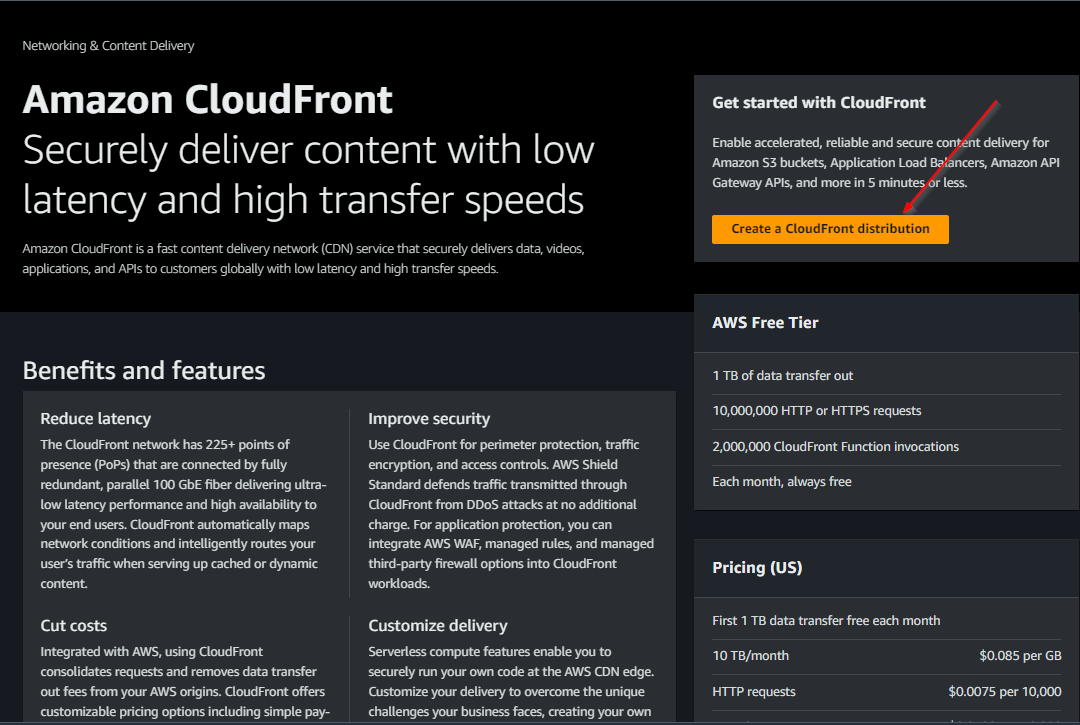

-this will enable HTTPS and Caching -Search for cloud front Click create cloud front distribution

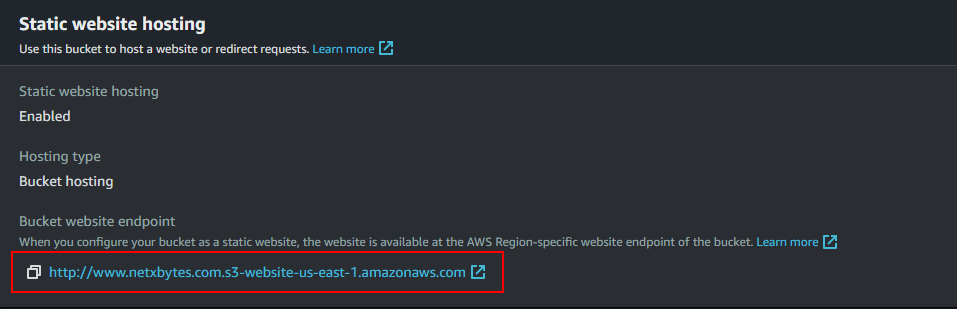

-The the correct endpoint url for both bucket from S3 bucket static site under properties

www.netxbytes.com.s3-website-us-east-1.amazonaws.com

Origin -Add Origin domain -http://www.netxbytes.com.s3-website-us-east-1.amazonaws.com

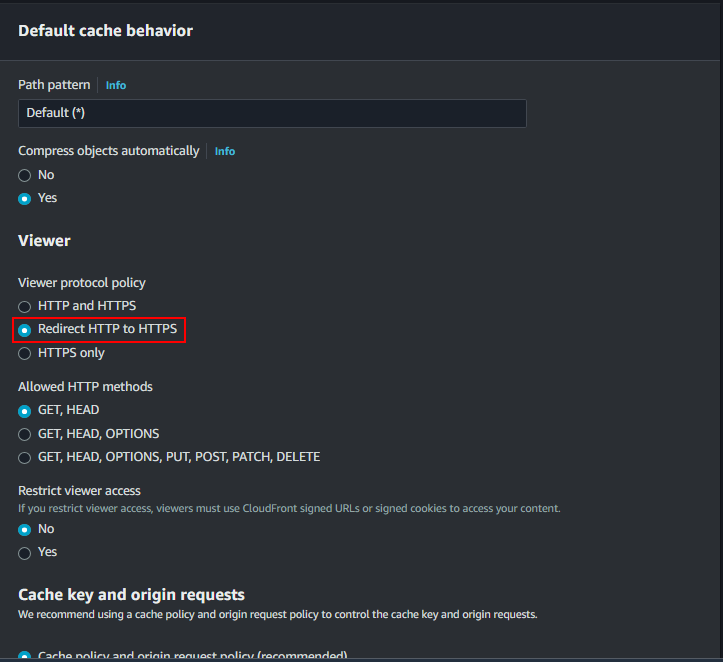

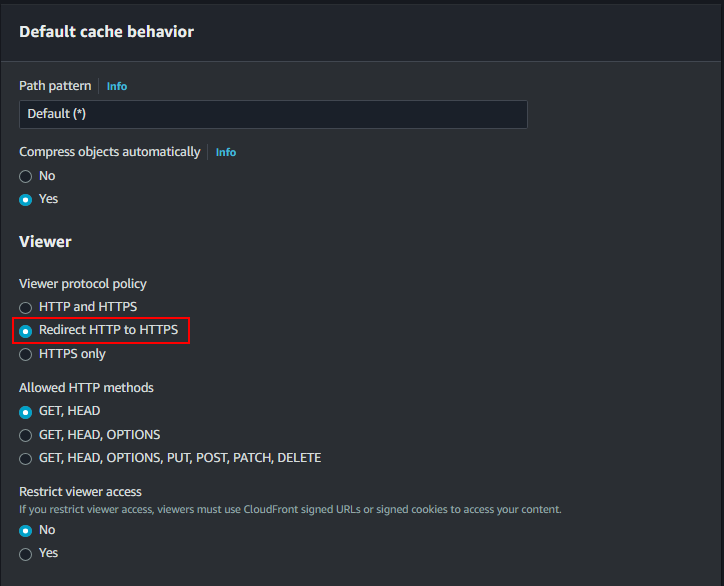

Default cache behavior -Select Redirect HTTP to HTTPS

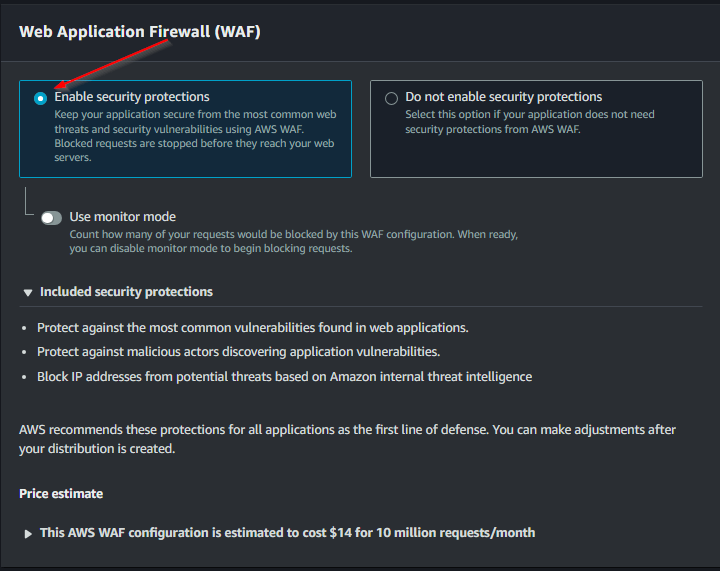

Web Application Firewall (WAF) -Select Enable security protections

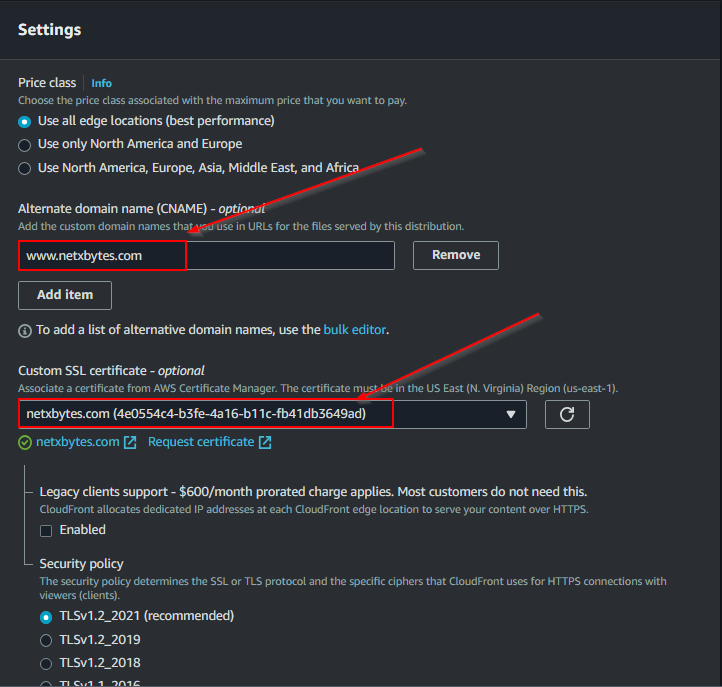

Setting -Alternate domain name (CNAME) - optional -add www.netxbytes.com -Custom SSL certificate - optional -Select netxbytes.com SSL

-Then Create Distribution at the bottom at the page

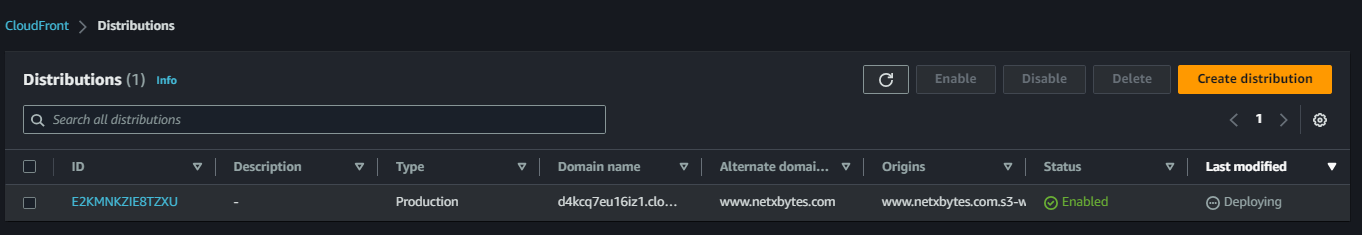

End Product

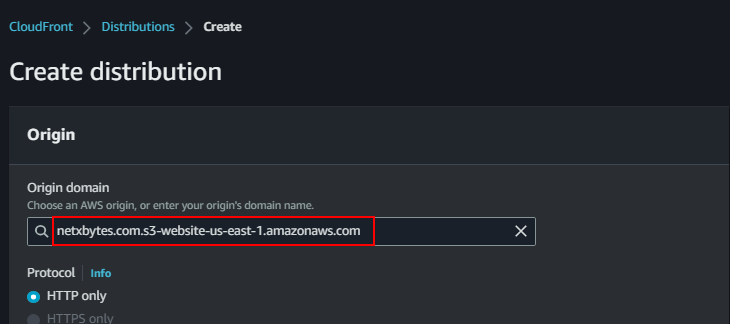

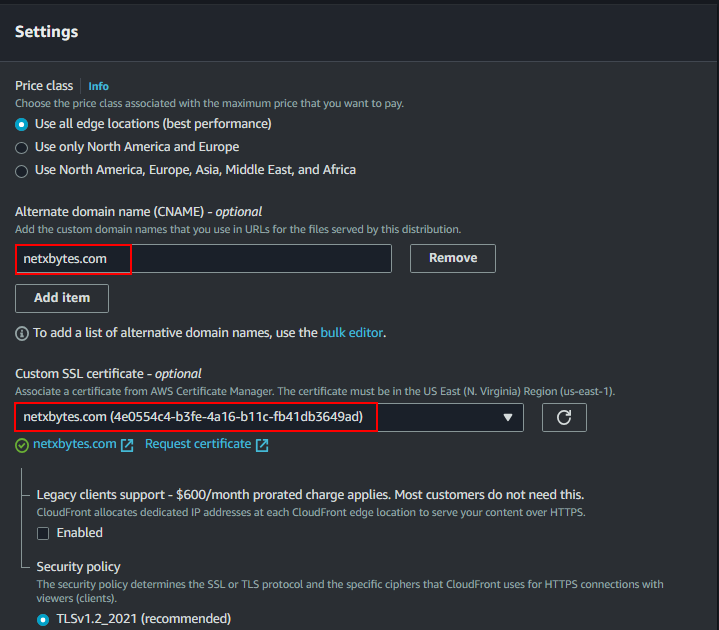

Do the same Steps for the netxbytes.com end point -User the website endpoint netxbytes.com.s3-website-us-east-1.amazonaws.com

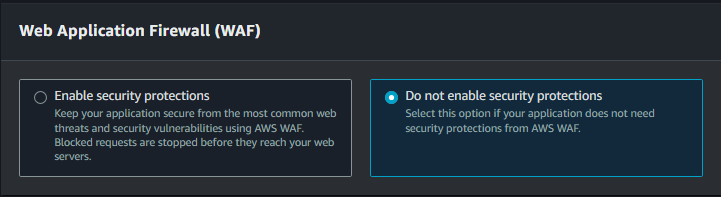

-WAF is optional here since this distribution only handles redirects from the apex domain to the www subdomain. Security protections are already applied on the primary www CloudFront distribution.

-Then Create Distribution at the bottom at the page

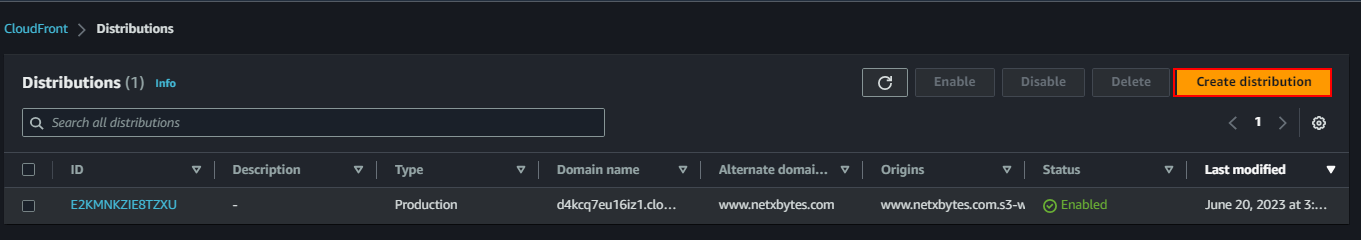

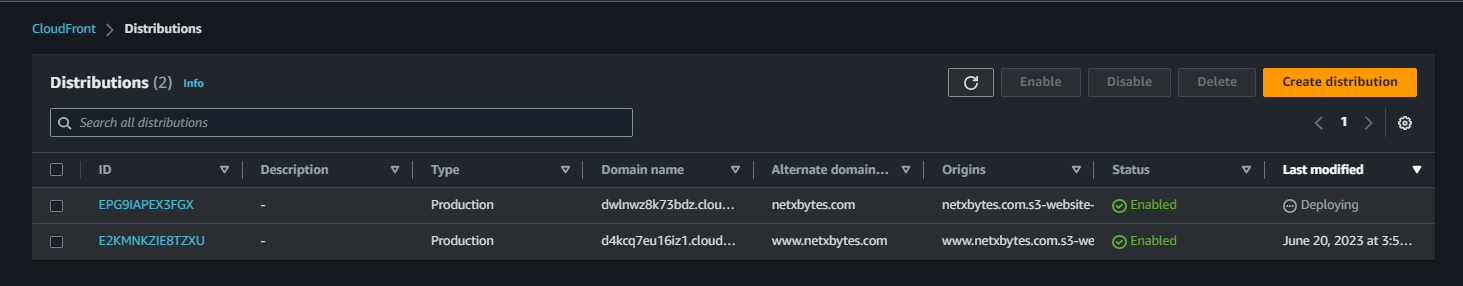

End product Both of the endpoint will be distributed to cloud front Traffic that is dested for www.netxbytes.com -will be server through cloud front that is backed by the assets that are in S3

Step 5: Add A Record to Route 53

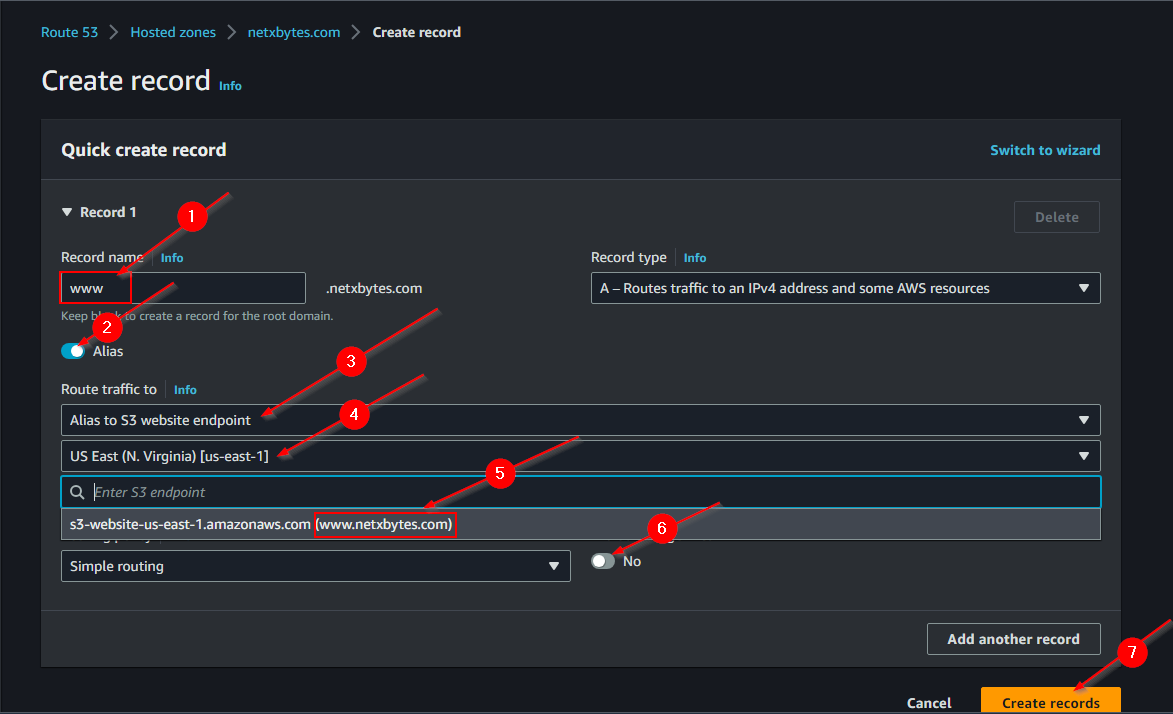

-Add A record for www.netxbytes.com and netxbytes.com

-Add a record -Create record

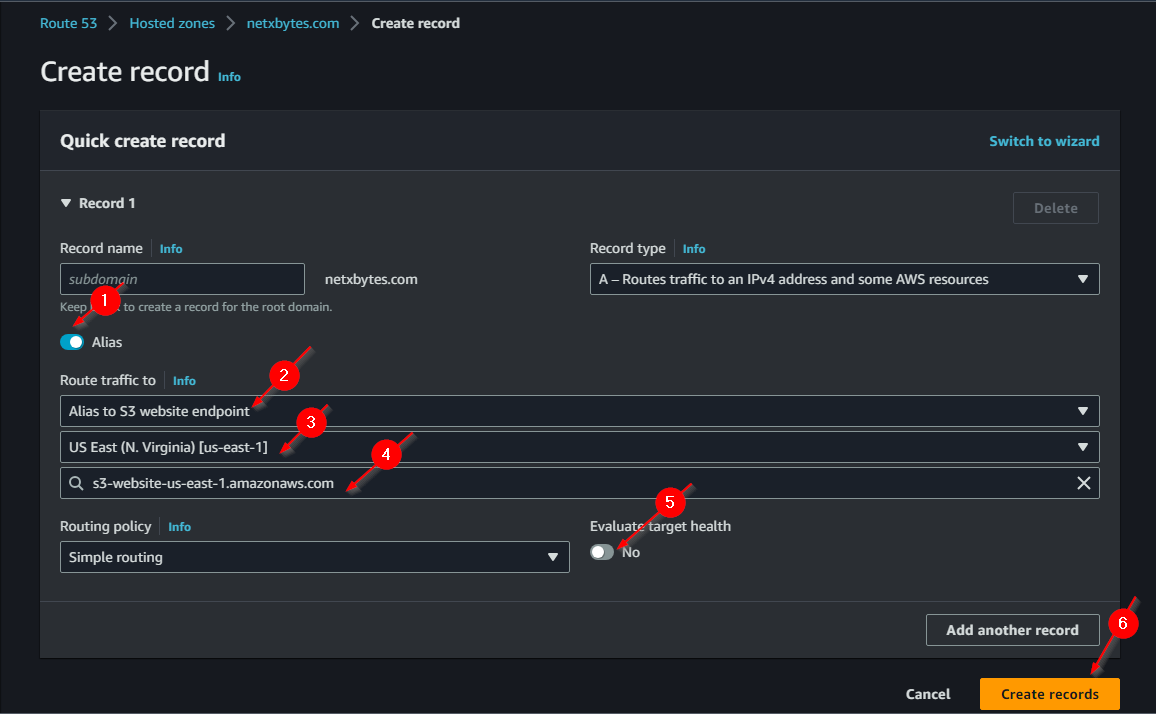

-Turn on Route traffic to Alias -Alias to S3 website end point -Set your current region -Then Add the endpoint (the S3 Bucket Url s3-website-us-east-1.amazonaws.com) -You can turn off evaluate target health -Then Create record

Add a sub Domain -Click on create record

Step 6: Enable HTTPS Redirect

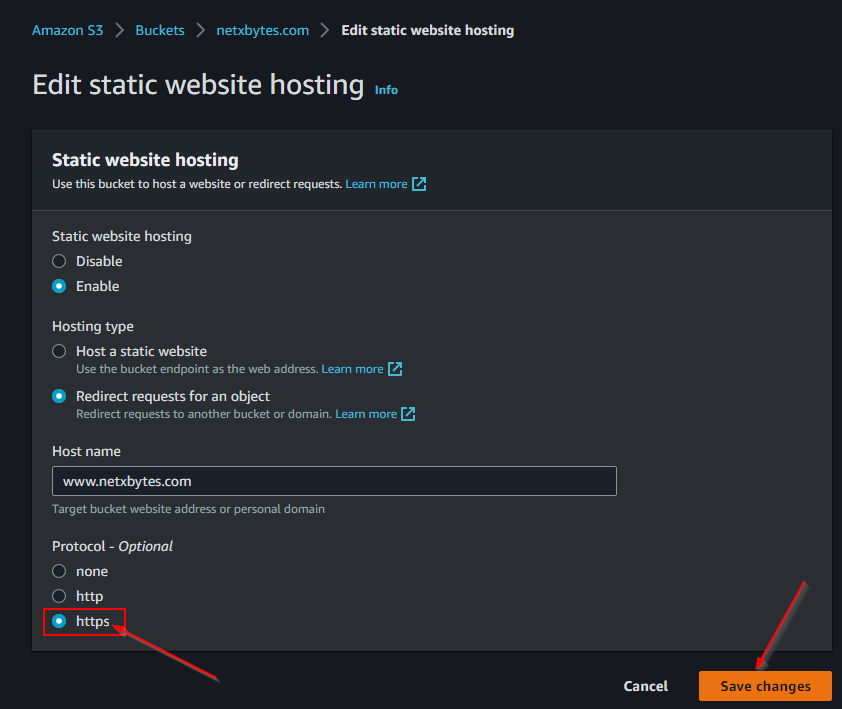

-Edit the static website hosting and change the protocol to HTTPS

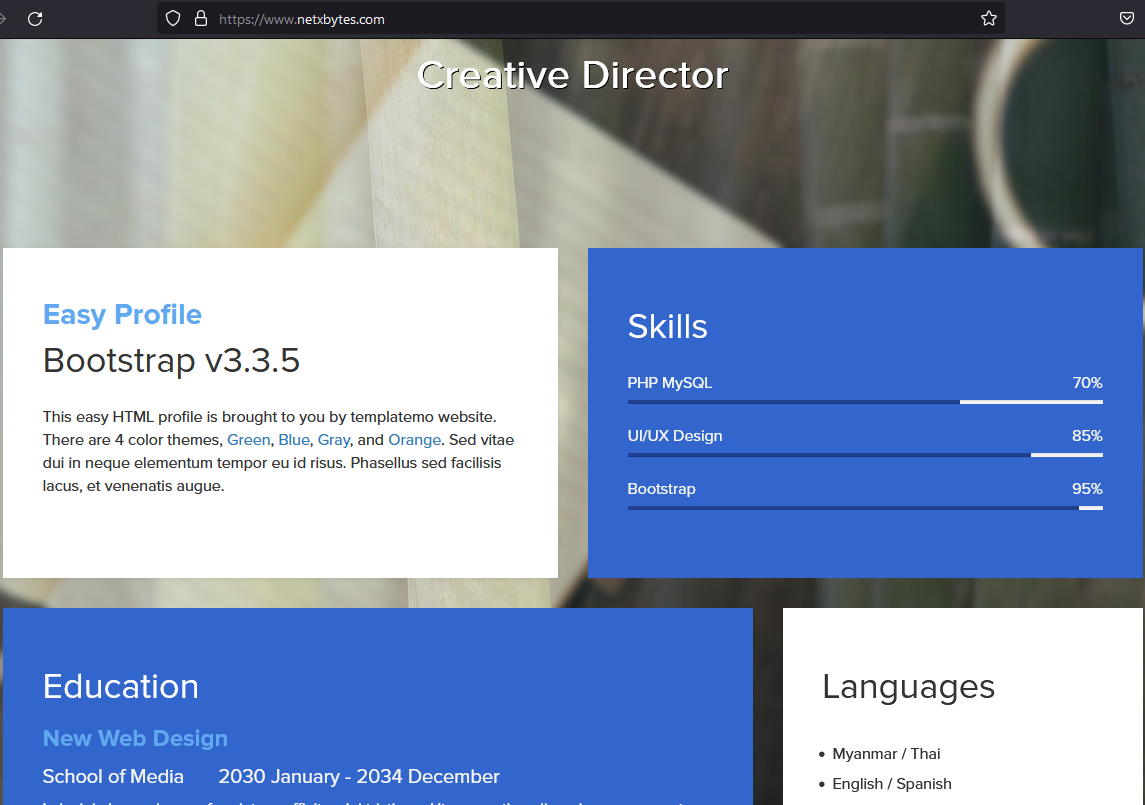

Step 7: Test

Check the Url now to see if its HTTPS
